Plot group means and SCC comparison overlay

This function visualizes a two-group Simultaneous Confidence Corridor (SCC) result as a three-panel figure showing the mean estimate for each group and an overlay panel with SCC-detected differences.

Usage

plotSCCcomparisonPanel(
  scc,
  title = NULL,
  zlim = "auto",
  palette = "nih",
  label1 = "Group 1 Mean",
  label2 = "Group 2 Mean",
  label3 = "SCC Overlay",
  overlay = c("positive", "negative", "both", "none"),
  useRawMeans = FALSE
)

Arguments

scc

A list-like SCC result object, typically returned by ImageSCC::scc.image(), containing the components required for plotting group means and SCC-derived significant points.

title

character, title shown above the panel. If NULL, the default title is "SCC COMPARISON PANEL".

zlim

Either "auto" to compute color limits from the plotted values, or a numeric vector of length 2 specifying the lower and upper limits of the fill scale.

palette

character, color palette used in the mean heatmaps. Supported values are "nih", "viridis", and "gray".

label1

character, title of the first group panel.

label2

character, title of the second group panel.

label3

character, title of the SCC overlay panel.

overlay

character, which SCC-detected points to overlay in the third panel. Supported values are "positive", "negative", "both", and "none".

useRawMeans

logical, if TRUE, the group means are computed directly from scc$Ya and scc$Yb. If FALSE, the function uses scc$Yhat.

Value

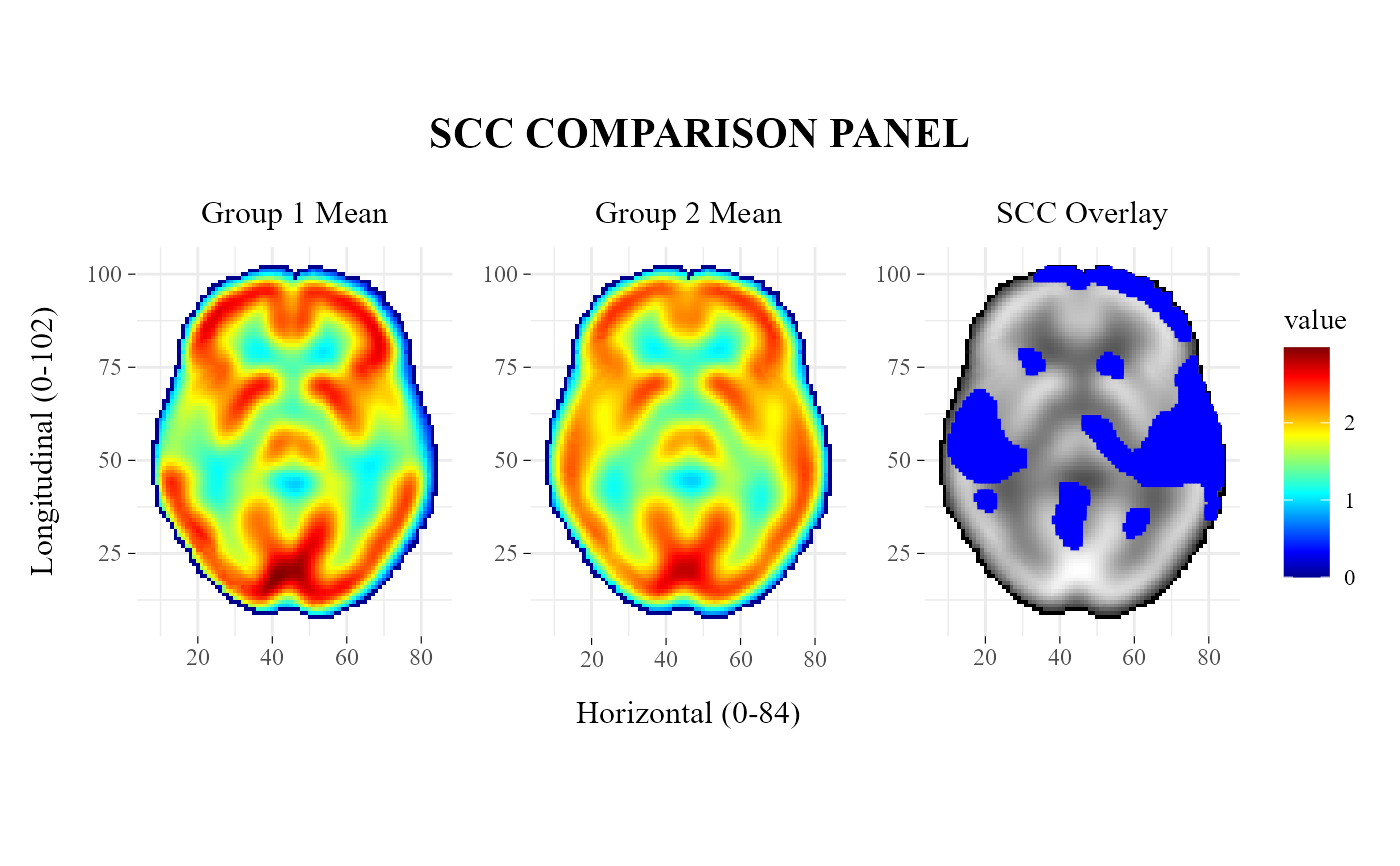

A patchwork/ggplot object containing three aligned panels:

• mean estimate for group 1,

• mean estimate for group 2,

• SCC overlay panel with detected positive and/or negative points.

Details

The first two panels use a shared continuous color scale to facilitate direct comparison between group mean estimates. The third panel uses a grayscale background and overlays SCC-detected significant points.

Positive and negative SCC detections are obtained internally using getPoints.

See also

SCCcomp for the example two-group SCC object used in the examples.
getPoints for extraction of SCC-detected significant points.
plotSCCpanel for single-group SCC visualization.
plotValidationPanel for SCC versus SPM performance visualization.

Examples

data("SCCcomp", package = "neuroSCC")
plotSCCcomparisonPanel(SCCcomp, title = "SCC COMPARISON PANEL")
